Exercise – 16 / QGIS Cloud / తెలుగులో నేర్చుకుందాం

Exercise – 16 /  QGIS Cloud


QGIS Cloud

QGIS Cloud is your powerful Web-GIS platform for publishing maps, data and services on the internet. Create and edit professional maps with all the capabilities from QGIS

  • Add Vector Layer to Layers panel, assign symbology & display text.

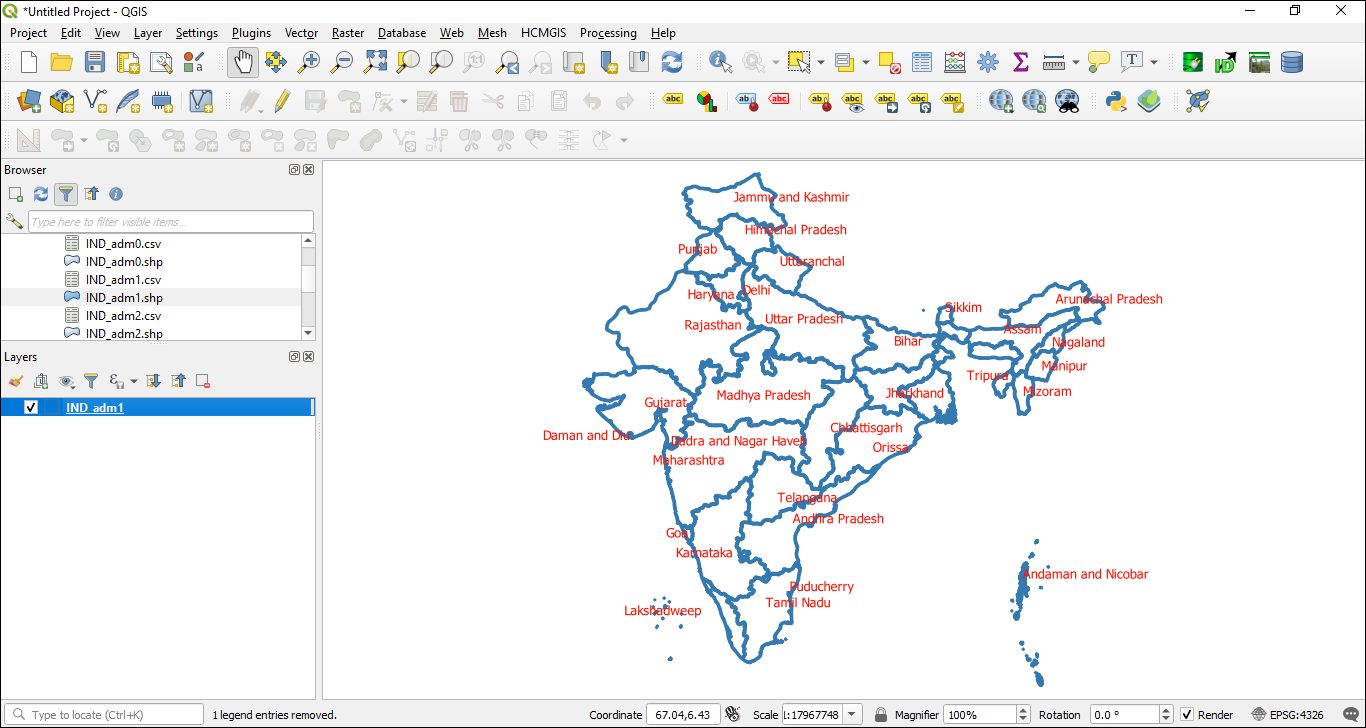

Figure 223 - QGIS Canavas with added Layer with symbology & lable display

  • Choose Plugins→Select QGIS Cloud Plugin and click on Install Plugin

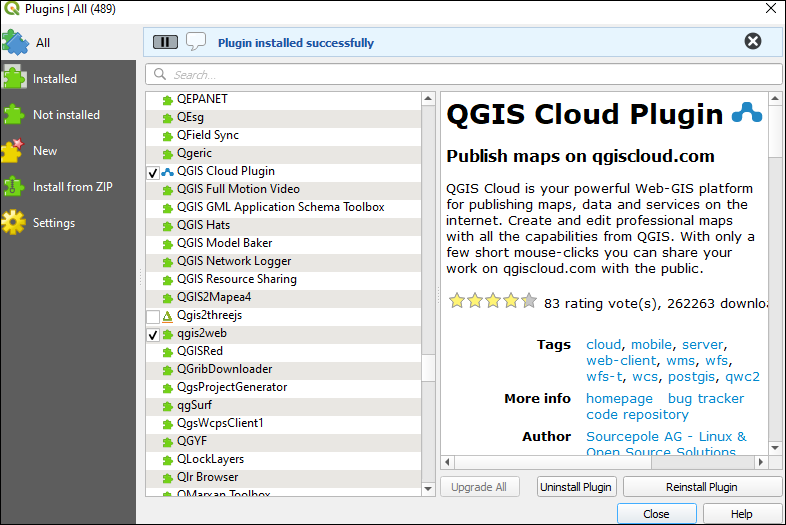

Figure 224 - Plugin Install window

  • QGIS Cloud window will be added under Layer panel

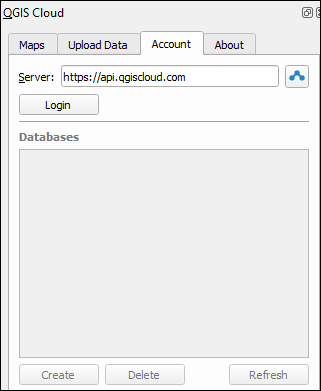

Figure 225 - QGIS Cloud window

  • Click on Signup to create an account in QGIS Cloud
  • After creating account in QGIS cloud, click on Loginand provide User Name and Password

Figure 226 - Login window for QGIS Cloud

  • Click on Create button for creating a workspace in QGIS Cloud

Figure 227 – QGIS Cloud window with created workspace


  • Click on Upload Data tab to select the layer and click on Upload Data

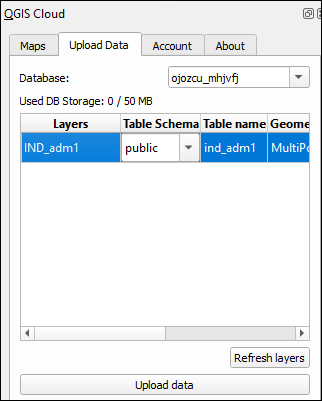

Figure 228 – Upload Data

  • Click on Publish Map



  • The data has been published as;
    • Webmap
    • WMS/WFS/WCS

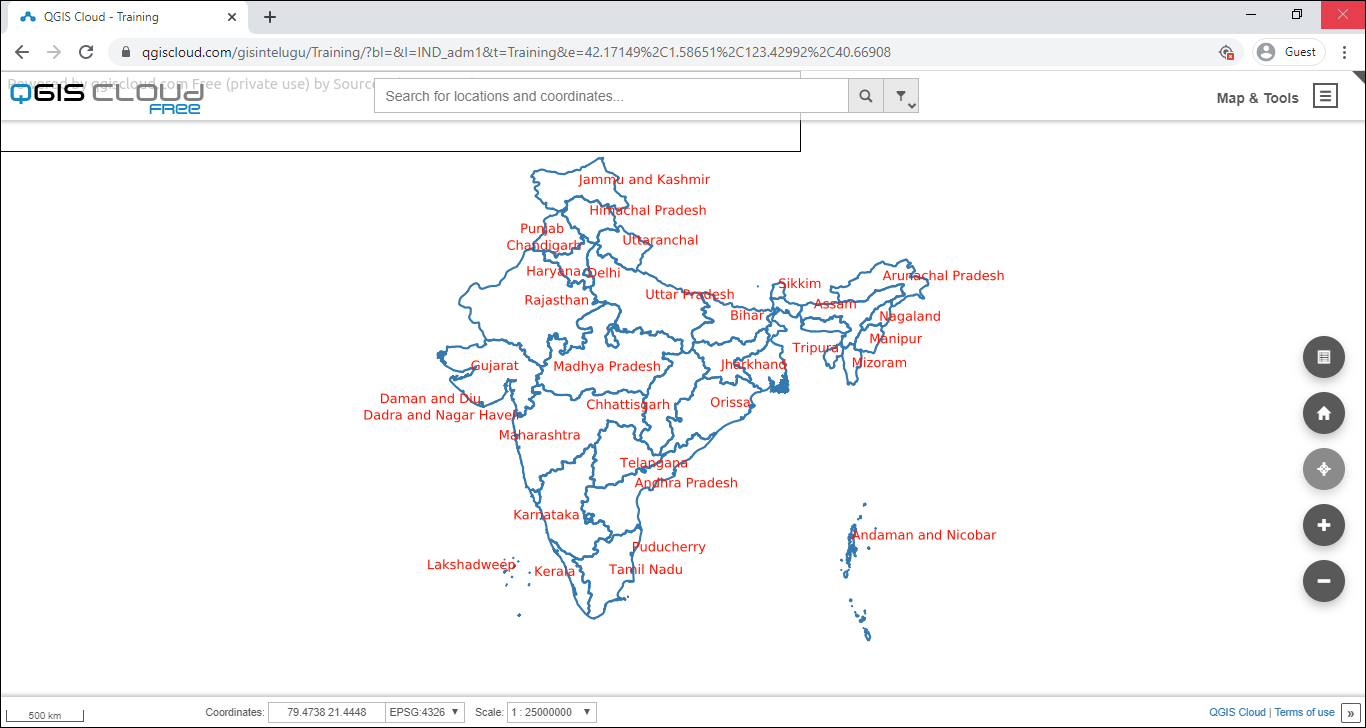

  • Click on Webmap to view the published data in web browser

Figure 231

  • Right click on the WMS/WFS/WCSand Copy Link Location to add in WMS/WMTS as a new connection in QGIS (follow Exercise 14 to add WMS in QGIS).
  • Click on Map Admin: https://qgiscloud.com/maps to login to QGIS web pageand view the uploaded data.

Figure 232 - QGIS Cloud page with uploaded data
