How to Rename attribute fields in QGIS & How to Rearrange attribute fields in QGIS | తెలుగులో నేర్చుకుందాం

How to Rename attribute fields & Rearrange attribute fields in QGIS

Refactor fields

Refactor fields, allows editing the structure of the attribute table of a vector layer. Fields can be modified in their type and name, using a field’s mapping.

The original layer is not modified. A new layer is generated, which contains a modified attribute table, according to the provided fields mapping.

Refactor layer fields allows to:

  • Change field names and types
  • Add and remove fields
  • Reorder fields
  • Calculate new fields based on expressions
  • Load field list from another layer
  • Add Vector Layer to Layers panel to Drop field(s)
  • Choose Processing → Toolbox → Vector table → Refactor fields


Figure 178 - Vector layer with attribute table before Refactor fields

  • Select Input Layer (Ex: Ind_adm1)
  • Select fields to be renamed and reorder (Ex: in the below given example Name_0 has to rename as Namewith Length from 75 as 100 and change order of Name_1 under Name_0 [Name after rename])

Figure 179 - Fields mapping window before rename and reorder of fields

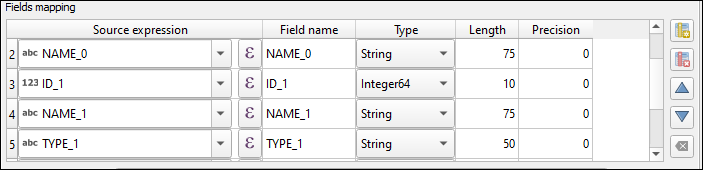

Figure 180 - fields mapping window after rename and reorder of fields

  • Click on load fields from layer, if fields are to be loaded from other existing layer if not leave default.
  • Click on Run

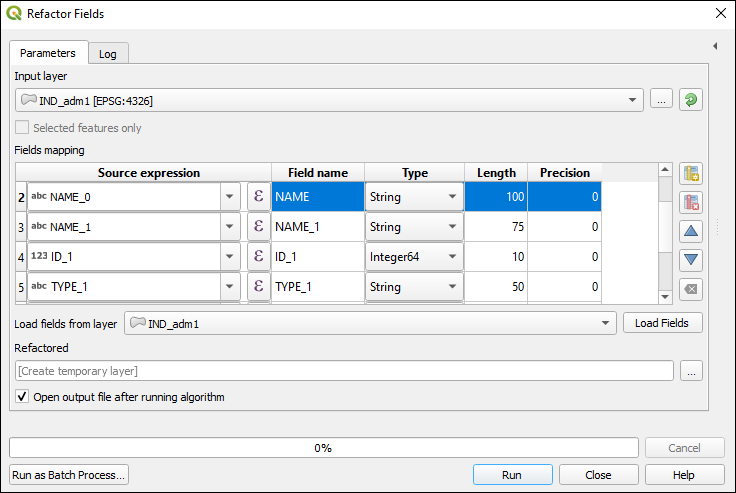

Figure 181 – Refactor fields window

  • Temporary layer will be created and added to Layer panel with Refactored layer. Right click on the layer and save to destination folder.

Figure 182 - Vector layer with attribute table after Refactor fields

  • Open attribute table to see the changes done with the Refactor layer.

Figure 183 - Refactored layer attribute table
