Exercise – 12 / How to Create GRID in QGIS తెలుగులో నేర్చుకుందాం

Exercise – 12 / How to Create GRID in QGIS



Create Grid

Generate a line or polygon grid based on user-specified grid spacing.

  • Add Polygon/Line/Point Layer to Layers panel for creating GRID

Figure 150 - QGIS canvas with polygon layer added for creation of GRID

  • Choose Vector →Research tools →Create Grid
  • SelectGrid Type (Point / Line / Rectangle / Diamond / Hexagon)
  • Select Grid extent(Use canvas extent / select extent on canvas / use layer extent)
  • Suggestedto select use layer extent andselect the layerand click on OK.
  • Provide Horizontal spacing in meters / kilometers / feet / miles / yards
  • Provide Vertical spacing in meters / kilometers / feet / miles / yards
  • Provide Horizontal overlay in meters / kilometers / feet / miles / yards(if required only, or else leave as 0)
  • Provide Vertical overlay in meters / kilometers / feet / miles / yards(if required only, or else leave as 0)
  • Select Grid CRS
  • Click on Run
  • Temporary layer will be created and added to Layer panel with Grid layer. Right click on the layer and save to destination folder.


Figure 151 - Create Grid window

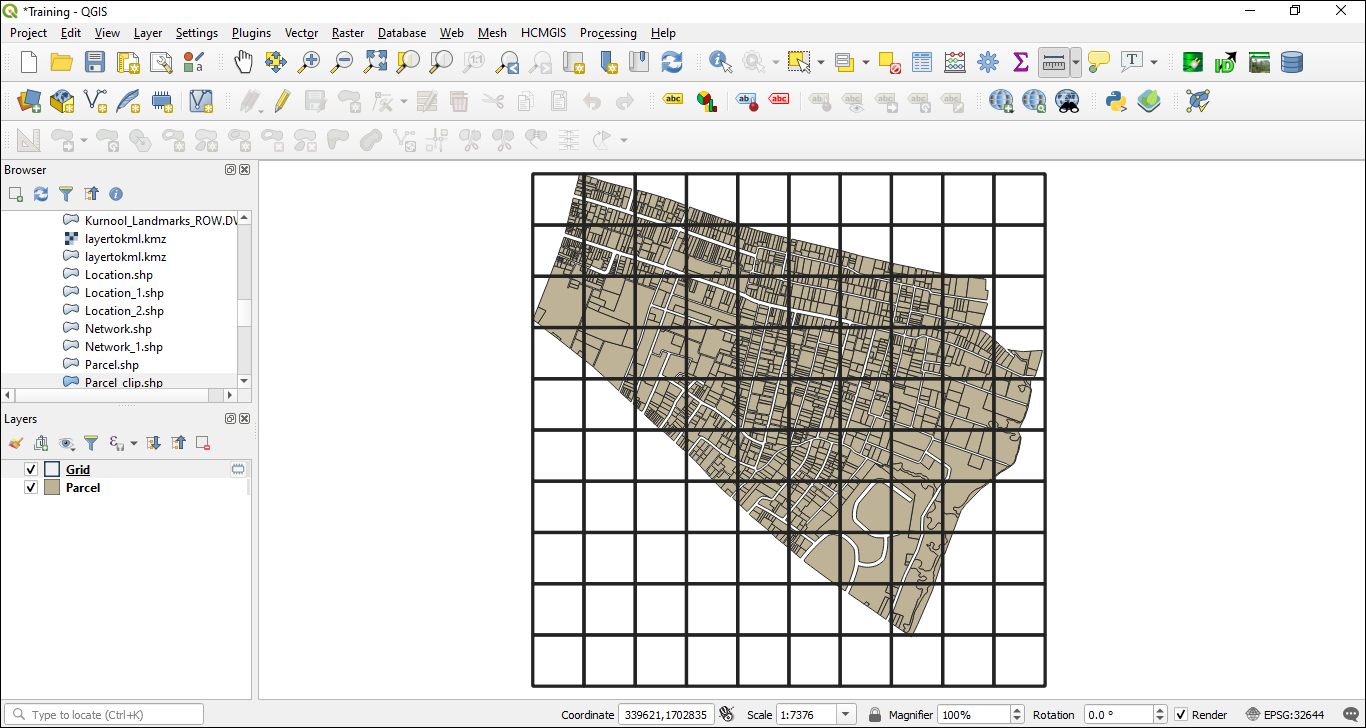

Figure 152 - QGIS canvas with created Grid Layer
